THC Fire Label Applicator Round Jars and Side Labels (Call for Price)

Call for Price - (800) 842-4773

SKU:
AP-10046515

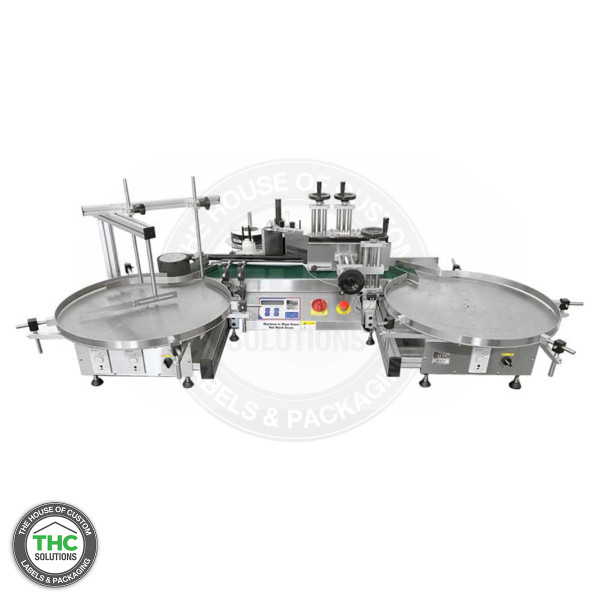

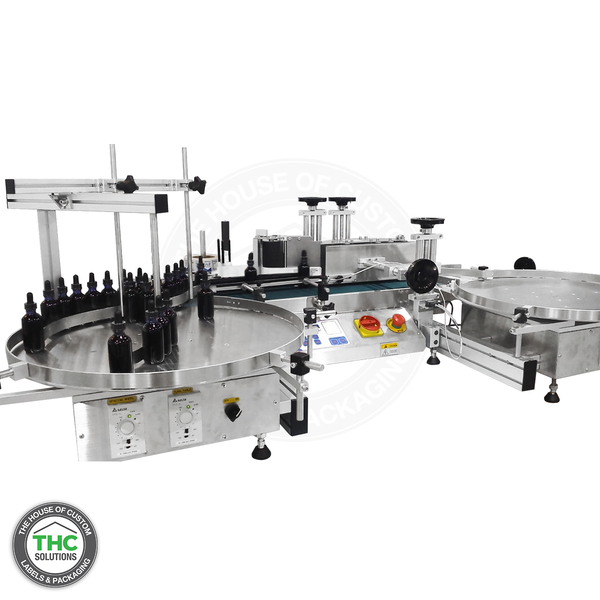

THC Fire Label Applicator Round Jars and Side Labels (Call for Price)

The THC Fire can be used as a Tabletop Applicator. Labels containers with a max label size of : 4.75” (300mm) x 11.8” (120mm). Maximum container width 6.3” (160mm).

KEY BENEFITS

  • Applies Labels to Jars (One person to operate)
  • Application: Up to 1,500 Labels per Hour. Up to 750-1,000 Jars per Hour.
  • Footprint: 90” x 54” x 58” (2286mm x 1372mm x 1474mm) includes turn tables
  • Machine: 72” x 36” x 40” (1829mm x 915mm x 1016mm) includes turn tables

SPECIFICATIONS

Speed

Maximum Dispensing Speed: 52.5’/minute, (16m/minute),
60 cont/minute

Maximum Conveyor Speed: 32.8’/minute, (10m/minute), 60 cont/minute

Dimensions

Dimensions L-W-H: 43.3" x 34.3" x 20"
(1100mm x 870mm x 508mm)

Maximum Label Size: 4.75" x 11.8"
(120mm x 300mm)

Maximum Container Width: 6.3" (160mm)

Conveyor Width: 6" (152.4mm)

Spool Diameter:  10" (254mm)

Inner Core: 10" (254mm)

Power

Voltage: 110/220 VAC 50/60 HZ 1 Phase

Power in KW: .460

Drive: 2 Phase Stepper Motor

Net Weight Approx 165 lbs (75 kgs)



FAQ

1) What is the warranty?

     1a) There is a one year manufacture warranty

2) Is there training available?

     2a) Yes, training is available for an additional cost either in person or over video call. Please contact us for more details.

3) Is there a maximum product diameter size for this applicator?

     3a) The maximum diameter would be 6.3 inches for this applicator.

4) What is the lead time for receiving this applicator?

     4a) Lead times vary depending on the availability of the applicator.

5)What is the approximate oupt put per hour?

     5a) The number differs depending on the size of the label but on average it can output between 1,000 and 1,500 labels per hour.

6) Does this machine require mulitple people to operate?

     6a) This applicator requires a minimum of one person in order to properly operate.
