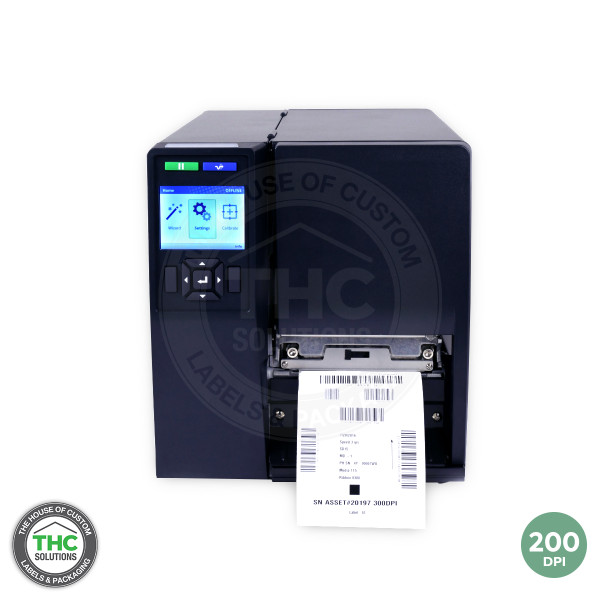

THC RFID UHF Printer represents the next generation of industrial, high-performance thermal barcode printer.

Setting new benchmarks for speed, print quality, validation and reliability, the THC RFID Printer is engineered with the singular mission of increasing true productivity and lowering compliance fees. Loaded with advanced features, validation technology, RFID capabilities and the most comprehensive emulation package available, the printer delivers supercharged performance for a wide array of applications.

FEATURES

Product Tracking Increased efficiency in today’s fast-moving supply chains	Asset Management Quickly locate critical products and inventory.	Identification Help personnel to more easily identify products.

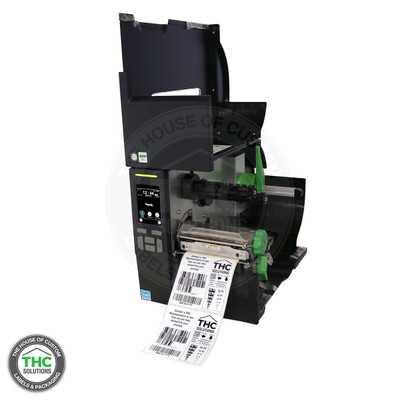

Speed Stellar quality print at lighting fast speed, clocking in at 14 ips Increased productivity at every shift as a direct result of the ARM Cortex-A9 controller, processing barcode data faster than ever before Ease-of-Use and an interactive screen reduces training and down time, helping your business focus on operational productivity	Ease of Use Media and ribbons are easy to install. The printer uses thermal transfer ribbons of up to 110 meters in length on 0.5” notched cores. The media cabinet holds label rolls up to 5 inches in diameter on 1” or 1.5” cores and are easily loaded into a center biased spring loaded roll holder.	Reliability Exclusive validation solutions eliminate expensive compliance fees by producing 100% quality barcodes, 100% of the time Comprehensive WiFi security suite featuring the very latest protocols to block unauthorized access and ensure peace of mind Intelligent heat management system increases printhead life and improves barcode print quality while reducing operating costs.

SPECIFICATIONS

• High performance ARM Cortex-A9
• Die-cast aluminum frame with metal door
• Transfer and direct printing
• 4" model configurations
• Premium Asian and Andale font support
• State-of-the-art WiFi connectivity
• Available in 203 DPI
• 512MB RAM / 128MB Flash Memory
• 4-32 GB SD memory card capability
• ENERGY STAR Certified

PRINTING CHARACTERISTICS

• Max. Print Speed: 14 IPS @ 203 DPI
• Printing Methods: Thermal transfer or Direct thermal
• Resolution: 203 DPI
• Max. Print Width: 4.1" (104mm)
• Printer Memory: 512MB RAM / 128MB Flash

MEDIA SPECIFICATIONS

• Media Types: Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets
• Media Width: 1.0" (25.4mm) to 4.5" (114.3mm)
• Min. Media Length: 0.25" / 1.0" (Continuous/Tear-Off)
• Max. Media Length: Up to 99"
• Media Thickness: 2.5 Mil (0.0025") to 10 Mil (0.010")
• Roll Core Diameter: 1.5" (37.5mm) to 3.0" (76mm)
• Max. Media Roll Diameter: 8.0” (209mm)
• Media Sensing: Gap, Mark

RIBBON CHARACTERISTICS

• Ribbon Type: Wax, Wax/Resin, Resin
• Coating: Coated side in, coated side out
• Min. Ribbon Width: 1" (25.4mm)
• Max. Ribbon Width: 4.5" (114.3mm)
• Max. Ribbon Length: 450 Meters

PHYSICAL CHARACTERISTICS

• Width: 10.9" (276.9mm)
• Height: 12.3" (312.4mm)
• Depth: 20.3" (515.6mm)
• Printer Weight: 33.6 lbs. (14.5Kg)

PRINTER LANGUAGES

• IGP Languages: PGL/VGL/ZGL/TGL/IGL/STGL/ DGL/IEGL/MGL
• Job Control Languages: PJL, XML, and PTX-SETUP
• Optional Languages:
  • IPDS
  • TN5250
  • PDF Level 1.7, Postscript Level 3

COMMUNICATION & CONNECTIVITY/INTERFACE

• Standard Interface I/O: Serial RS232, USB, and Ethernet 10/100Base T
• Optional Interface I/O: Parallel, WiFi (802.11a/b/g/n), GPIO
• WiFi Security Protocol: WEP 40/128bit, WPA Personal (PSK), WPA2 Personal (PSK) and Enterprise (AES CCMP), EAP-TLS, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1, EAP-MD5

MEDIA HANDLING MODES

• Standard: Continuous, Tear-Off Strip, Tear-Off

RFID

• UHF EPC Gen2 / ISO18000-6C: Multi-position RF antenna, Advanced Printer Encoder Firmware encodes and validates Gen2 compliant tags
• On-Pitch label to 0.625 in (depending on inlay)
• PGL, ZPL, STGL, MGL language support
• Counters track good / bad label encoding

OPERATING ENVIRONMENT

• Operating Temperature: 40 to 104°F (5 to 40°C)
• Operating Humidity: 20 – 85% Non-Condensing
• Storage Temperature: 23 to 140°F (-5 to 60°C)
• Storage Humidity: 5 – 85% Non-Condensing

POWER REQUIREMENT

• Line Input: Auto Range 100 – 264 VAC (48 – 62 Hz)

REGULATORY COMPLIANCES

• Emissions: FCC, CE, CCC
• Safety: cTUVus, CE, EAC, SABS, RCM, CCC, KCC, S-MARK, NOM
• Environmental: RoHS, WEEE, Energy Star
• Radios (WiFi/RFID): FCC, CE, IC, and others based on market need

BAR CODE SYMBOLOGIES

• 1D Barcodes: BC-412, Code 11, Code 39, Code 35, Code 93, Codabar, Code128 Subsets A/B/C, Industrial 2 of 5, Interleave 2 of 5, German I-2/5, EAN-8, EAN-13, UCC/EAN-128, UPC-A, UPC-E, UPCSHIP, UPS 11, MSI, Matrix 2 of 5, PLESSEY, POSTNET, 4-state PostBar, Australian 4-state, FIM, ITF14, TELEPEN, PLANET, USPS Intelligent Mail, LOGMARS
• 2D Barcodes: PDF-417, MicroPDF-417, Maxicode, DataMatrix, QR Codes, Aztec, GS1 Databar (RSS-14)

Contact us for RFID supplies or information.
