In Stock
have questions?

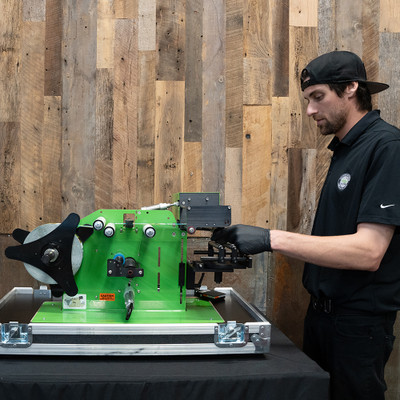

Suited for round products, it is a versatile desktop label applicator. Air Compressor required (sold separately). Electric Label Applicator. Foot Pedal Operated. Round products, from 1/4" to 6.5" in diameter. Max Label Width 5" x 6".
Unit Dimensions | 16W x 17H x 20L” |
Shipping Weight | 75 pounds |
Electrical Requirements | 115 VAC, 60 Hz. |
Sgl Air Requirement | 40 PSI |
Product Size | 1/4" to 6.5" |
Minimum Label Size | 1/2" x 1/2" |
Maximum Label Width | 5" |
Maximum Roll Diameter | 12" |
Core Size Diameter | 1" or 3" |
Optional Features | Front / Back Label Kit All Purpose Carriage 7" Wide Label Kit Clear Label Photo Sensor Ink Jet Printer Ink Imprinter |
FAQ
1) Will my label work with the applicator?
1a) Please send a sample roll of your labels for testing. Contact us for more information
2) Can I use different label sizes for this applicator?
2a) Yes, however different molds will need to be made/ordered at an aditional cost to hold the product in place to secure the best placement of sticker consistently.
3) What is the approximate output per hour?
3a) The number differs depending on the size of the label but on average it can output around 750 applications per hour.
4) What's the label's wind direction?
4a) Depends on which way the label is being applied.
5) What is the warranty?
5a) One year manufacture warranty
6) What is the lead time?
6a) Lead times vary depending on the availability of the applicator.
7) Is training available?
7a) Yes, training is available for an additional cost either in person or over video call. Please contact us for more details.
